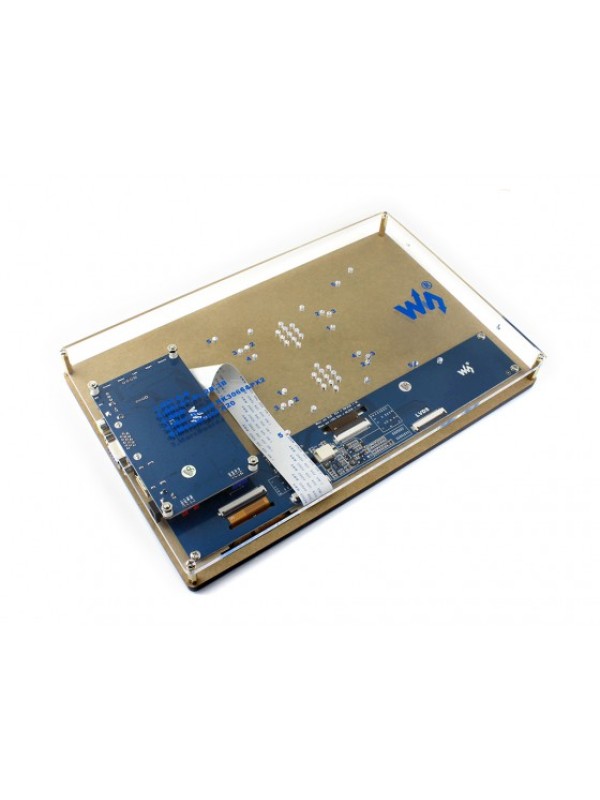

10.1 inch Capacitive Touch Screen LCD

10.1 inch Capacitive Touch Screen LCD

rating
0 reviews | Write a review
$95.77
1024×600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces, Comes with US plug power adapter

The LCD and Control Board

  • 1024×600 high resolution
  • Capacitive touch control
  • When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
  • Supports BB Black, comes with Angstrom image
  • Multi video input interfaces: HDMI, VGA, and AV(CVBS)
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • Supports 100-level backlight adjustment
  • Firmware is upgradable to support more new features (continually updated)

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

The Case

  • Material : high quality clear Acrylic
  • Comes with bottom holder, 45° tilt angle
  • Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, and BB Black

Using with Game Consoles

Part Number Microsoft XBOX Sony PS4 Nintendo Switch
Display Sound Display Sound Display Sound
3.5inch HDMI LCD √ √ √ √ √ √
5inch HDMI LCD (G) √ √ √ √ √ √
5inch HDMI LCD (H) √ √ √ √ √ √
7inch HDMI LCD √ × √ × √ ×
7inch HDMI LCD (H) √ √ √ √ √ √
10.1inch HDMI LCD √ × √ × √ ×
10.1inch HDMI LCD (B) × × × × √ ×
10.1inch HDMI LCD (D) √ √ × × √ √
10.1inch HDMI LCD (H) √ √ × × √ √
11.6inch HDMI LCD (H) √ √ √ √ √ √
13.3inch HDMI LCD (H) √ √ √ √ √ √

Note:

  • Limited by the game console OS, the touch function is unavailable.
  • Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

Photos

Note: Raspberry Pi in the photos is NOT included.

External Dimension

Development Resources

www.waveshare.com/wiki/10.1inch_HDMI_LCD_(H)_(with_case)

Selection Guide

Part NumberResolutionDisplay InterfaceTouch Panel InterfaceFor use withDimension (mm)Touch Panel TypeToughened Glass CoverIPSSoundMulti Systems DisplayMulti Systems TouchPopular Game ConsolesHow you feel
2.8inch RPi LCD (A)320×240I/OI/OPiAs the Pi 3B+Resistive××××××★☆
3.2inch RPi LCD (B)320×240I/OI/OPiAs the Pi 3B+Resistive××××××★★
3.5inch RPi LCD (A)480×320I/OI/OPiAs the Pi 3B+Resistive××××××★★★
3.5inch RPi LCD (B)480×320I/OI/OPiAs the Pi 3B+Resistive×√××××★★★
3.5inch RPi LCD (C)480×320I/O ※I/OPiAs the Pi 3B+Resistive××××××★★★
3.5inch HDMI LCD480×320HDMII/OPiAs the Pi 3B+Resistive×√√√×√★★★★
4inch RPi LCD (A)480×320I/OI/OPi94 × 61Resistive×√××××★★★☆
4inch HDMI LCD480×800HDMII/OPi99 × 58Resistive×√×√××★★★★
4.3inch HDMI LCD480×272HDMII/OPi106 × 68Resistive××××××★★★☆
5inch HDMI LCD800×480HDMII/OPi121 × 78Resistive××××××★★★★
5inch HDMI LCD (B)800×480HDMIUSBNot only Pi121 × 76Resistive×××√√×★★★★☆
5inch HDMI LCD (G)800×480HDMIUSBNot only Pi121 × 76Resistive××√√√√★★★★☆
5inch HDMI LCD (H)800×480HDMIUSBNot only Pi121 × 76Capacitive××√√√√★★★★☆
7inch HDMI LCD1024×600HDMII/OPi165 × 107Resistive×××√××★★★★
7inch HDMI LCD (B)800×480HDMIUSBNot only Pi165 × 107Capacitive×××√√×★★★★☆
7inch HDMI LCD (C)1024×600HDMIUSBNot only Pi165 × 107Capacitive×√×√√×★★★★★
7inch HDMI LCD (H)1024×600HDMIUSBNot only Pi165 × 107Capacitive※√√√√√★★★★★
10.1inch HDMI LCD1024×600HDMII/OPi235 × 144Resistive×××√××★★★★
10.1inch HDMI LCD (B)1280×800HDMIUSBNot only Pi274 × 187Capacitive√√×√√×★★★★★
10.1inch HDMI LCD (H)1024×600HDMIUSBNot only Pi257 × 162Capacitive××√√√×★★★★☆
11.6inch HDMI LCD (H)1920×1080HDMIUSBNot only Pi285 × 182Capacitive√√√√√√★★★★★
13.3inch HDMI LCD (H)1920×1080HDMIUSBNot only Pi330 × 208Capacitive√√√√√√★★★★★

Note :
Pi 3B+ means Raspberry Pi 3 Model B+
If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.
Display Interface ※: 3.5inch RPi LCD (C) features 125MHz High-Speed SPI, provides higher refresh rate than normal I/O interface.
Toughened Glass Cover ※: the 7inch HDMI LCD (H) (with case) features toughened glass cover, while the 7inch HDMI LCD (H) uses a normal screen cover

Have a look :

Anti-Piracy

CAUTION: This product is protected by patent, anyone making copies/knock-offs SHOULD be held liable pursuant to law.

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:


(Click to enlarge)
